Assembly and Testing Equipment

Over two decades of experience in offering high quality automation solutions allows us to custom design and build single station assembly machines as well as test/inspection machines that suit your specific manufacturing process requirements. Our in-house design capability allows for total control of the project from start to finish. Adhering to ISO 17025 standards, we provide design plus fabrication services for a range of assembly and testing equipment applications in automotive, medical, as well as packaging industries.

A 10-ton hoist crane at our machine shop enables us to safely handle your custom built assembly equipment within our 40 feet by 80 feet build floor. Manufacturers seeking to increase the efficiency and accuracy of their assembly processes can benefit from our customized manufacturing services for mechanical, electrical, pneumatic, and robotic assembly equipment. We have previously designed and manufactured a unique range of assembly equipment, including automotive battery case heat-sealing machines, continuous motion conveyors for assembling heavy-duty starting motors, bearing presses for transmission cases, and assembly machines for motor starters.

For additional information or for your personal consultation regarding your component or product please select the “RFI” request information selection button to begin your communication.

Specifications

Product Categories

Assembly Machines for Automated Door Latch Components
Assembly Machines for Motor Starters
Bearing Presses for Transmissions
Continuous Motion Conveyors for Assembling Heavy Duty Starting Motors
Eddy Current Inspection Machine for detecting imperfections in production parts

Capabilities

Equipment List

PDF Equipment List (PDF – 47KB)

Design Capabilities

High Quality Assembly, Test and Inspection Machines, Gauges or Workholding Fixtures start with the highest level of design programs and experience.

  1. Two full time designers on staff with 66 years of combined experience.
  2. Design Software:
    • SolidWorks
    • AutoCAD
    • Mastercam

Examples

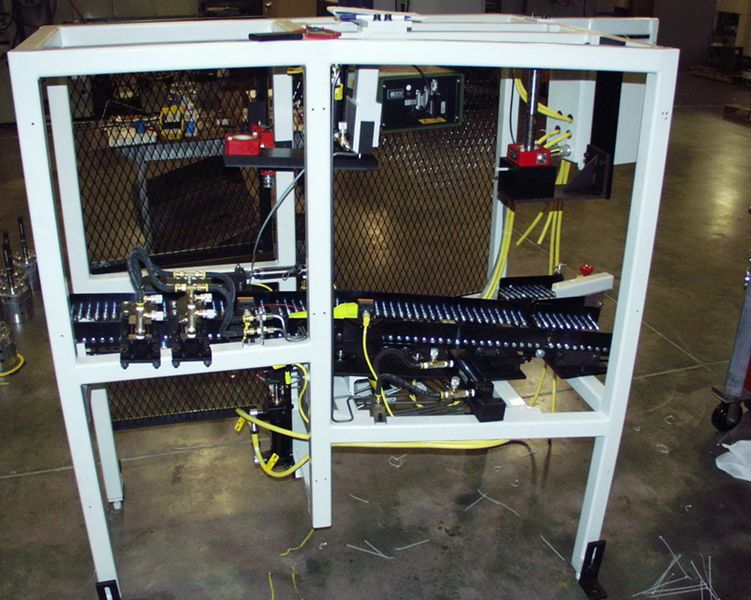

Eddy Current Inspection Machine

Eddy Current Inspection Machine
Sub-assemblies are stopped on the conveying system and checked for metallurgical imperfections on or under the surfaces.
larger image

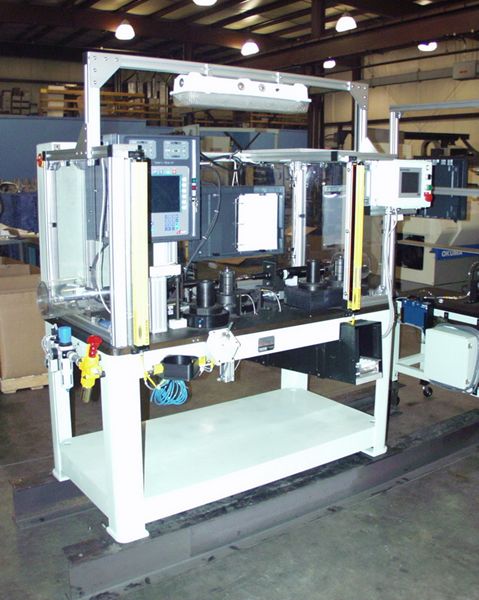

Starting Motor Case Assembly Machine

Starting Motor Case Assembly Machine
The case is placed in the nest with the inner winding assembly and then screws are driven into the assembly while DC screwdriver guns are setting the torque setting.
larger image

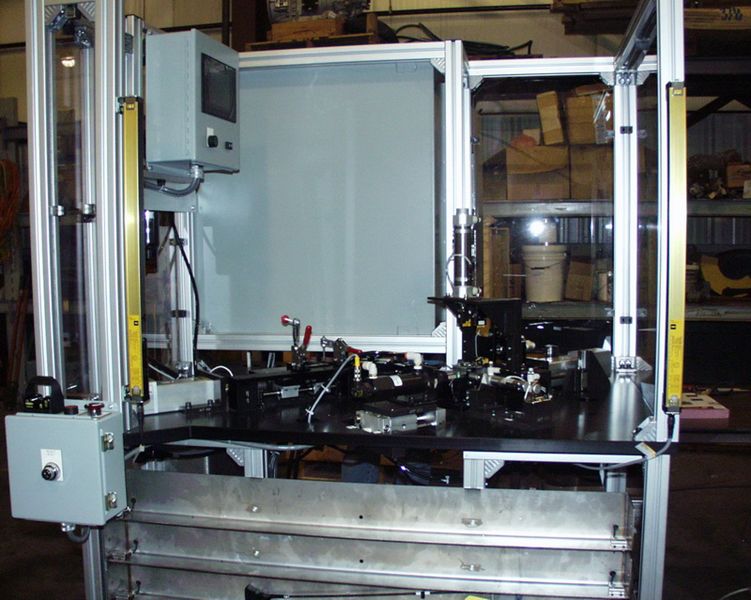

Automated Door Latch Assembly Machine

Latch Assy Machine
The door latch components are assembled to the door latch frame and tested for function and locking pressure release.
larger image

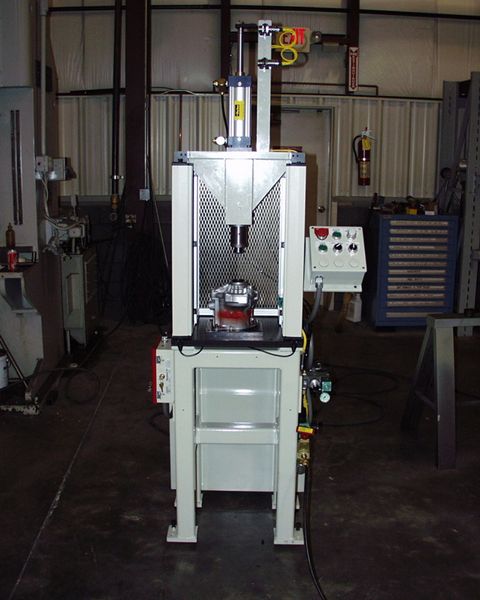

Transfer Case Seal Installation Press

Seal Insertion Press
Seal Insertion Press
larger image

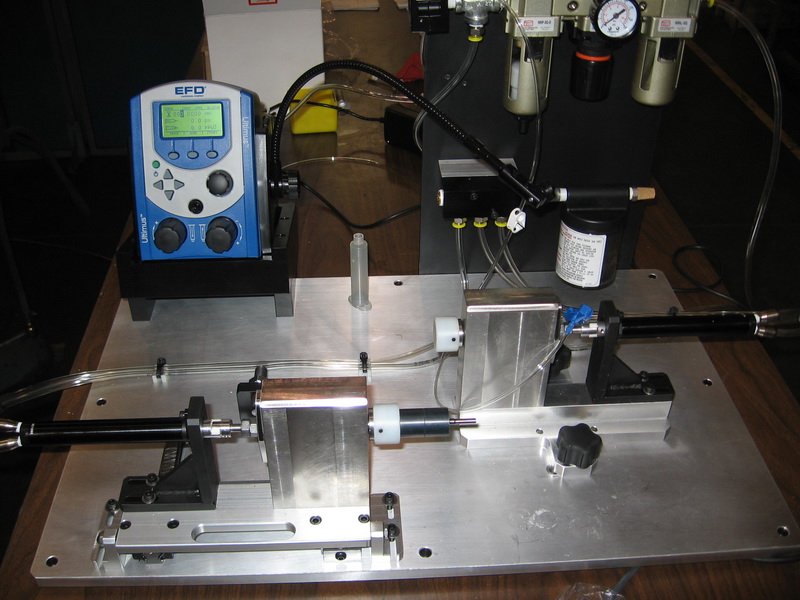

Automated Adhesive Applicator

Adhesive Applicator
Small air motors drive round magnetic components for assembly while applying a precise amount of adhesive.
larger image

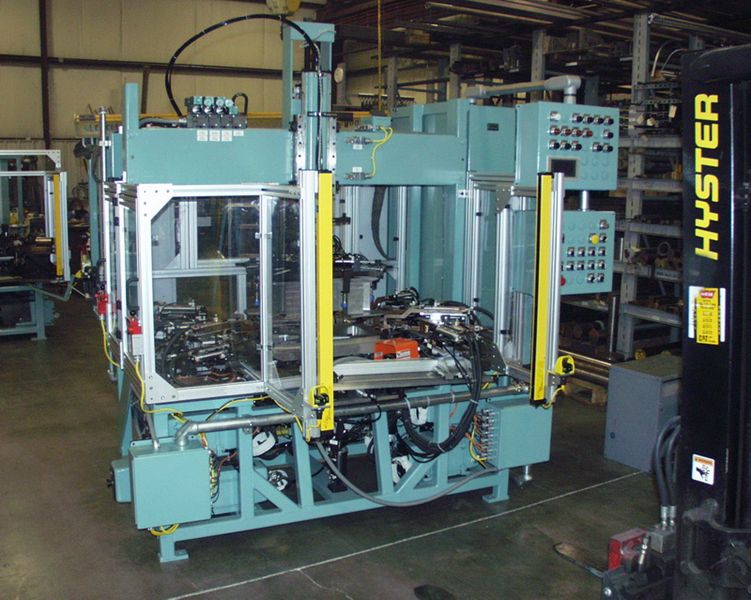

Television Tube Frame Welding Machine

CRT Frame Welder
The inner frame of a cathode ray tube is welded to the location clips for mounting into the panel glass.
larger image

Other Information

Acceptable Drawing Formats
  • Solidworks
  • Parasolids
  • STP / STEP
  • Inventor
  • Solid Edge
  • CATIA (*.cgr)
  • ProE / Creo
  • Unigraphics / NX
  • Rhino (*.3dm)
  • AutoCAD
Certifications
  • ISO 17025 Certification and Scope
Quality Statement

Kent Machine Incorporated Quality Statement:

We satisfy our customer base by:

  • Providing error-free products and extraordinary service.
  • Relying on the professional competence of a highly skilled workforce.
  • Implementing advanced laboratory quality management systems and practices.
  • Reviewing and improving the methods in which we conduct business. To this end we are committed to achieving these objectives.
  • Identifying risks to impartiality on an ongoing basis as well as monitoring and improving those risks. – Zane Kennedy
Industries Served
  • Aerospace
  • Orthopedic (Implants)
  • Medical Instrumentation
  • Automotive (Engine /Transmission)
Advantages

Kent Machine Inc. is a one-stop, quick-turnaround shop for gauge, machine and fixture design, build and calibration. We design, fabricate, build, calibrate and test our custom gauges and inspection equipment so you can confidently use them in production immediately upon receipt of your order.
