Machining Stainless Valve Body
(click on thumbnail to enlarge)

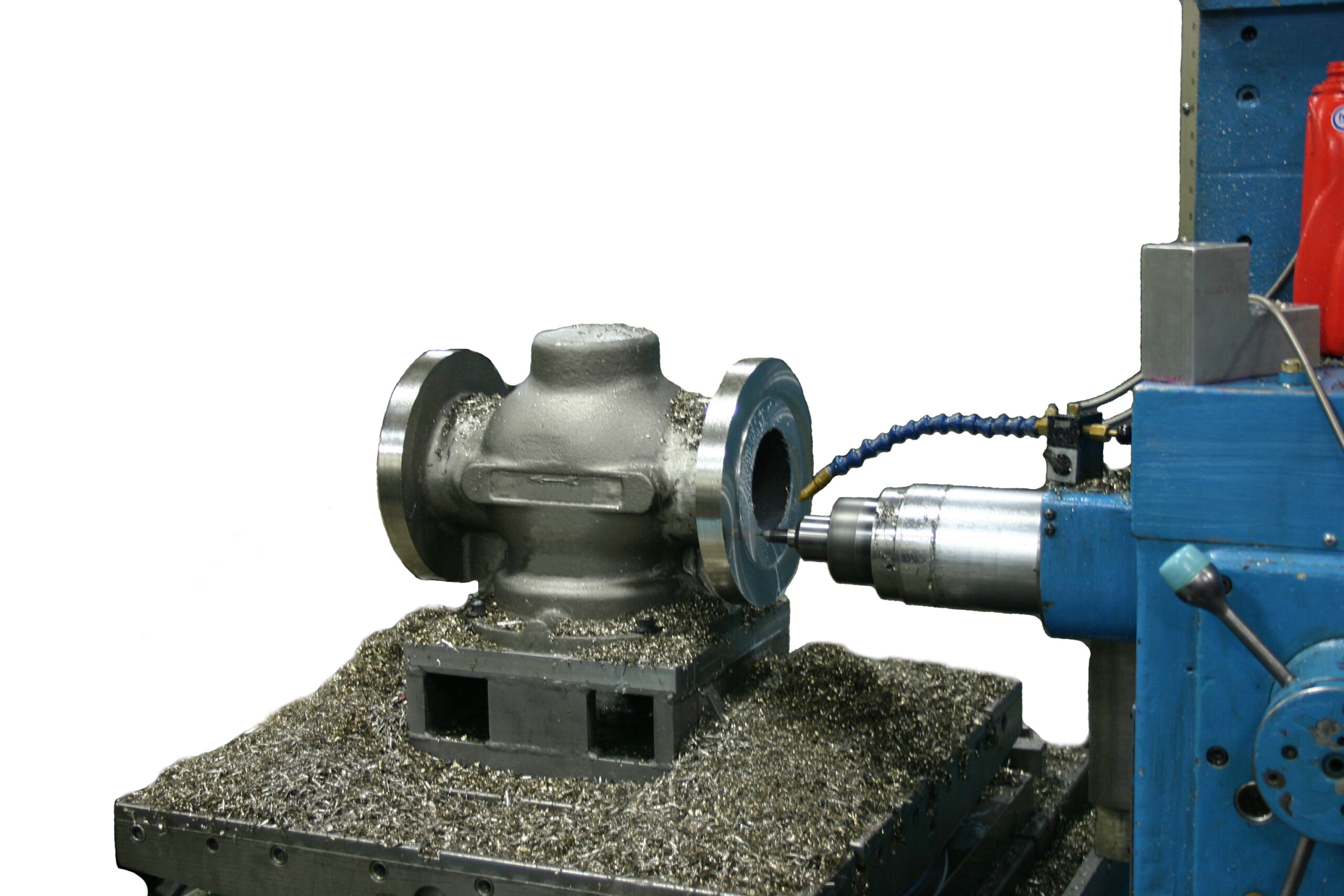

Kent Machine (KM) was contracted by a local manufacturer to machine valve bodies from cast iron, stainless steel and bronze castings. We utilized our Leblond Vertical Mill and our Cincinnati Horizontal Mill to machine each valve body. These bodies are all approximately 11.25″ x 12.75″. Tolerances as close as ±.001 were held on the bores.
Highlights of this Machining Project
- Design & Fabrication Capabilities Applied/Processes
-
Primary:
Machining
- Equipment Used to Manufacture Part
-
LeBlond Makino CNC Mill, Cincinnati Horizontal Mill.
- Overall Part Dimensions
-
Valve Body
- Length:12.75″
- Height: 11.25″
- Tightest Tolerances
-
±.001 Bore Diameters
- Material Used
-
Stainless Steel
Cast Iron
Bronze
- Material Finish
-
- In process testing/inspection performed
-
Dimensional Inspection
- Industry for Use
-
Oil and Gas
- Volume
-
2 to 10 piece lots.
- Delivery/Turnaround Time
-
2 Weeks
- Delivery Location
-
Indianapolis, Indiana
- Standards Met
-
Customer Specifications, Solid Modeling & 2D CAD Drawing
- Product Name
-
Valve Body
